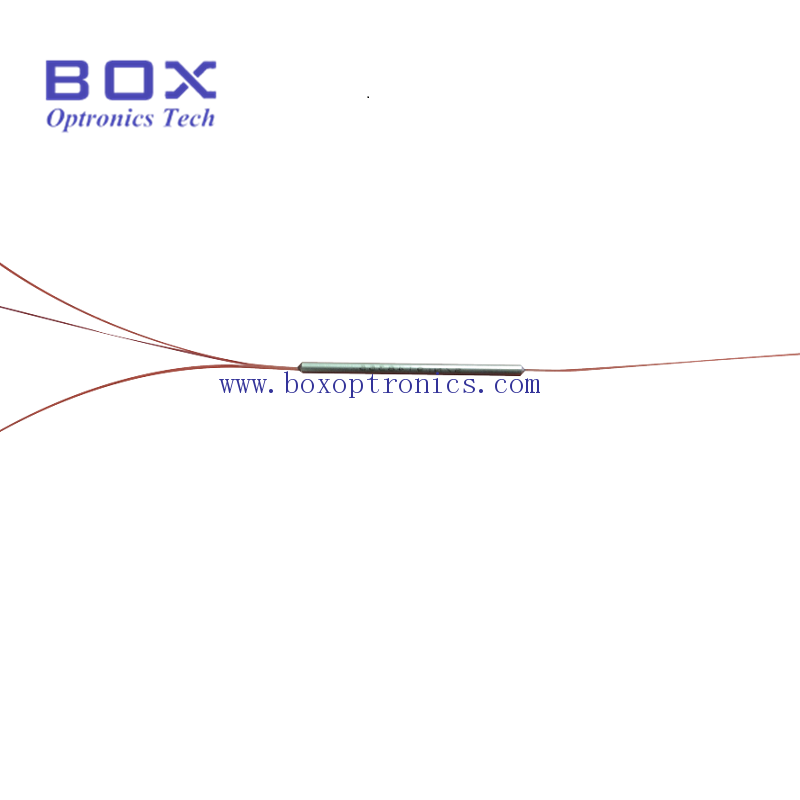

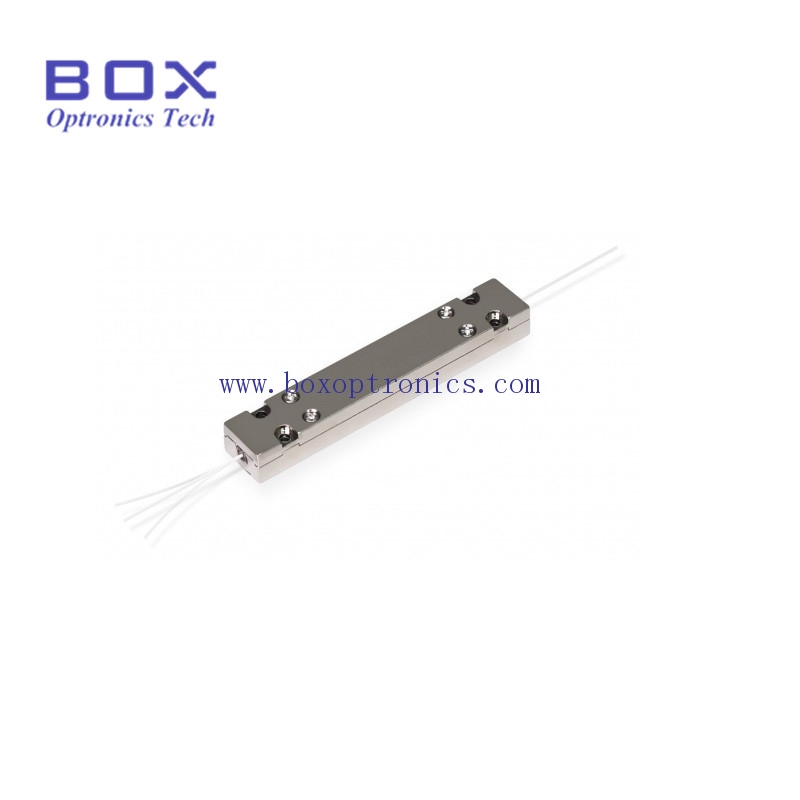

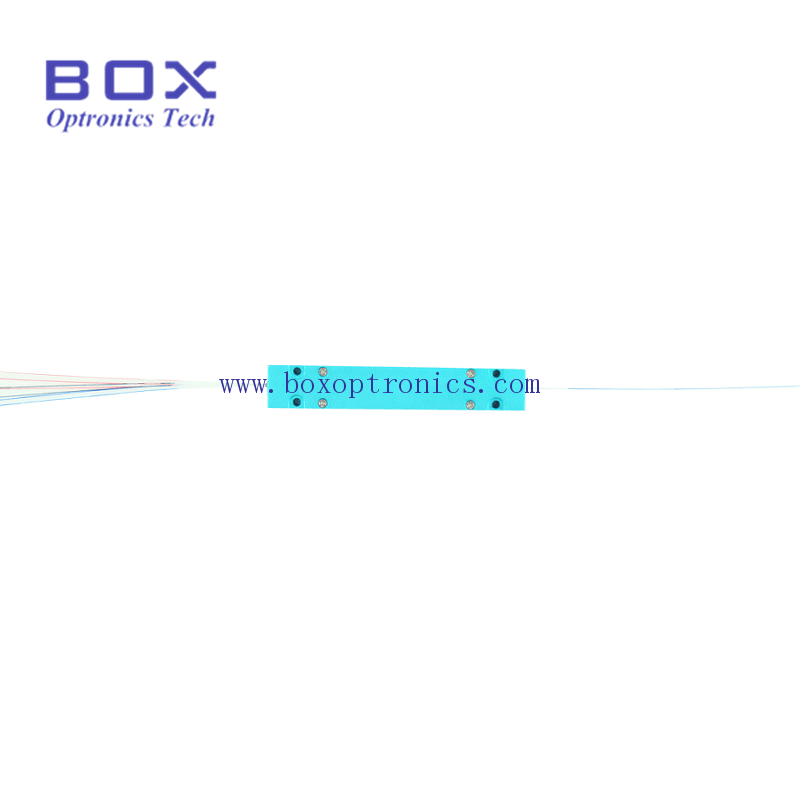

1550nm-(6+1)x1 fiber pump combiner
The (6+1)×1 Multi-Mode Fiber Combiner is designed for high power laser application. It combines six pump lasers and one signal channel into one double cladding output fiber.

File Name : Format: Size:

Description Feedback
Features
High signal transfer efficiency;
High power efficency;
1550nm Wavelength;
Customized configuration.

Applications
Optical fiber amplifier;
Fiber optic laser.

Electro-Optical Parameters

Parameter

Unit

Value

Signal working wavelength

nm

1550

Pump operating wavelength

nm

915/975



Pump fiber

Fibre core

m

105

Cladding

m

125

NA

-

0.15/0.22

Signal fiber

-

SMF-28e(XB), 1550GDF

Output fiber

-

1550GDF, DCF-UN-8/125-14

Pumping efficiency

%

≥93

Signal insertion loss

dB

≤0.7(type 0.5)

M2

-

≤1.3

Optical isolation

dB

≥25

Bearing power

W

≤25

Fiber length

m

≥0.8

Package size

mm

35/50/60/70x5.0x5.0, 70×12×8


Package

Original Carton Package;
As customers‘ requirement.

Shipping
5-10 Working days after receive the payment;
Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);
Shipping fee depends on the weight and size.


Payment
For large orders: T/T, Credit card;
For small orders: Paypal are accepted.

Warranty
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
