PM 1560.61nm 200KHz Narrow linewidth laser diode

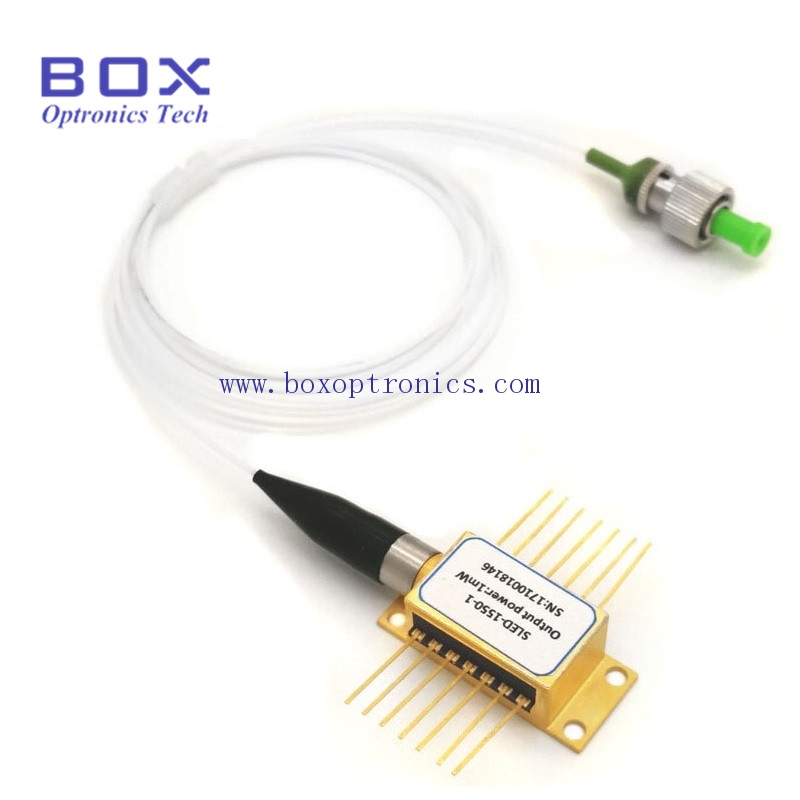

The 200KHz narrow linewidth LD directly modulated external cavity laser is cost effective solution for 2.5 Gbits/s digital transmission in SMF-28 fiber. This is fabricated in a hermetically sealed 14-pin butterfly package that contains thermoelectric cooler (TEC), thermistor, monitor photodiode, optical isolator.
The narrow linewidth LD provides substantially lower dispersion penalty  and lower chirp than a directly modulated DFB. The wavelength stability is assured by design, eliminating the need for wavelength lockers and complex feedback control circuits.

File Name : Format: Size:

Description Feedback
Features
ITU wavelengths across C-band;
100GHz channel spacing;
SONET/SDH OC-48/STM16 ring and meshed applications;
Low dispersion provides;
Low transient chirp provides unique narrow dynamic spectrum;
Excellent long-term wavelength stability eliminates the need for a wavelength locker.

Applications
Metro and Long Haul DWDM,100 GHz spaced networks;
SONET/SDH OC-48/STM16 ring and meshed applications;
Drop-side of DWDM long-haul transport equipment;
Optical Test and Instrumentation;
Microwave Photonics;
CATV networks.

Electro-Optical Parameters

Parameter

Symbol

Condition

Min.

Typ.

Max.

Unit

Center Wavelength

λc

TL=1735℃ CW

1559.11

1560.61

1561.11

nm

Optical Output Power

PO

-

5

-

-

mW

Spectral linewidth

LW

-

-

200

300

KHz

Side-mode Suppression Ratio

SMSR

CW

30

40

-

dB

Optical Isolation

-

-10 < TC < +70 ºC

30

-

-

dB

Relative Intensity Noise

RIN

CW, output power 5mW

-

-

-135

dB

Wavelength drift with case (-10 to 70 ºC) temperature

△λ

TEC temperature at 15℃ to 35℃

-

-

±30

pm

Wavelength Temperature coefficient

Δλ/ΔT

TEC temperature at 15 to 35℃

-

15

30

pm/ºC


Package

Original Carton Package;
As customers‘ requirement.
