405nm~940nm wavelength single-mode fiber coupled laserA-DFB laser | SLED Module

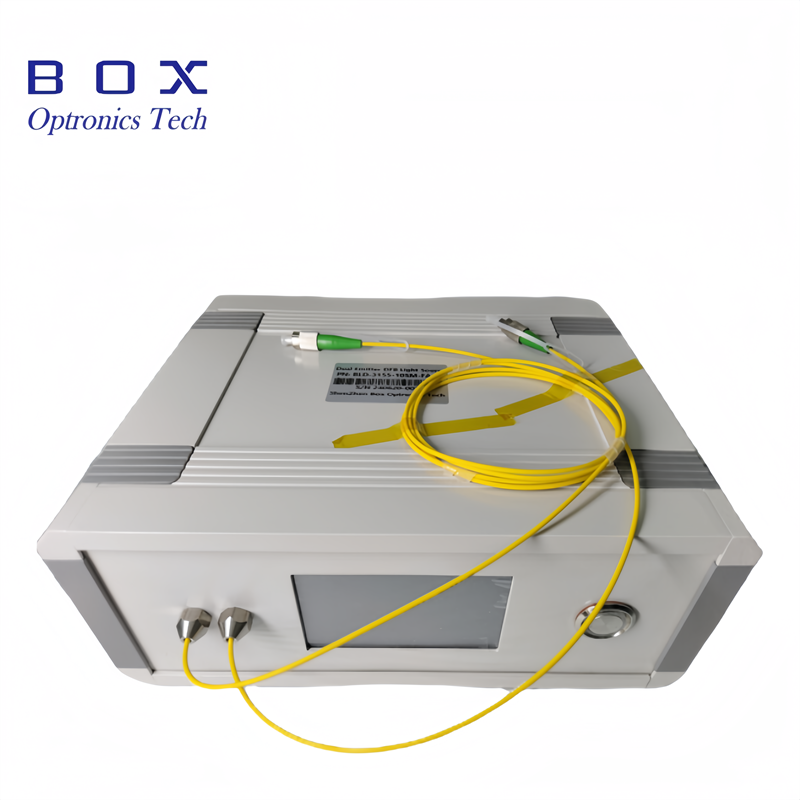

405nm~940nm wavelength single-mode fiber coupled laser

File Name : Format: Size:

Description Feedback

1. Features:

Single mode fiber output;

Spectral and power stability;

Excellent spot quality.

2. Application:

Spot indication;

Imaging;

3.Photoelectric characteristics and Typical wavelength and power:

Parameter	UNIT	typ	noted
Operating wavelength	nm	405~940	±5nm
Operating mode	-	CW	CW
Output power	mW	5/30/50/80	Determined by wavelength
Power regulating range	-	10~100%
Short-term stability (15 minutes)	dB	≤ ±0.02	Equivalent≤±0.5%
Long-term stability (8 hours)	dB	≤ ±0.05	Equivalent ≤±1.2%
Fiber Typ	-	SM fiber
Pigtail connector type	-	FC/APC
Dimensions	mm	260(W)×280(D)×120(H)	Benchtop
Power supply	V	100~240VAC, <30W	Benchtop
Communication interface	-	optional
Operating temperature	℃	-5 ~ +35
Storage temperature	℃	-40 ~ +85

Package

Original Carton Package;

As customers‘ requirement.

Shipping

5-10 Working days after receive the payment;

Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);

Shipping fee depends on the weight and size.

Payment

For large orders: T/T, Credit card;

For small orders: Paypal are accepted.

Warranty

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.
