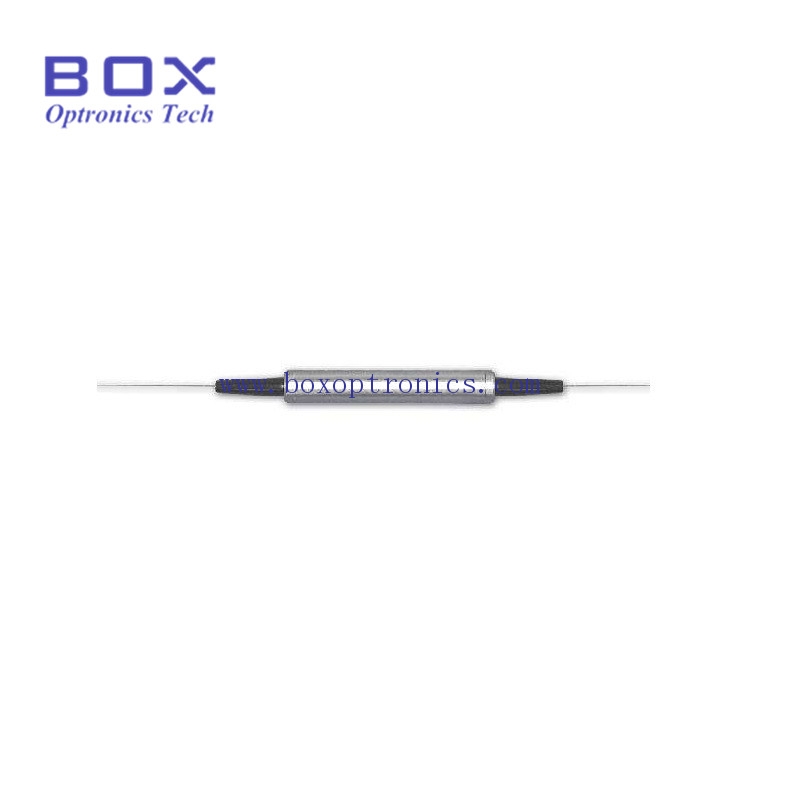

1064nm 300mW Single stage optical isolator

The optical isolators are passive optical devices that allow light to be transmitted in only one direction. Optical feedback degrades signal-to-noise ratio and consequently bit-error rate. Ideally a optical isolator would pass all light in one direction and block all light in the reverse direction.

File Name : Format: Size:

Description Feedback

Features

Low insertion loss;
High isolation;

High return loss;

High stability & reliability.

Applications

Communication systems;

Test instruments;

Fiber sensor;

Research.

Electro-Optical Parameters

Parameter	Unit	Value
Stage	-	Single		Dual
Grade	-	P	A	P	A
Center Wavelength	nm	1064
Operating Wavelength Range	nm	±5
Typ. Peak Isolation	dB	40	38	55	52
Typ. Insertion Loss at 23℃	dB	1.5	1.6	2.4	2.6
Min. Return Loss (input/output)	dB	50/50	50/50	50/50	50/50
Max. Optical Power(CW)	mW	300
Max. Tensile Load	N	5
Fiber Type	-	Hi1060 fiber or SCF 10/125 fiber
Operating Temperature	℃	-5~+50
Storage Temperature	℃	-40~+85

Package

Original Carton Package;

As customers‘ requirement.

Shipping

5-10 Working days after receive the payment;

Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);

Shipping fee depends on the weight and size.

Payment

For large orders: T/T, Credit card;

For small orders: Paypal are accepted.

Warranty

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.
