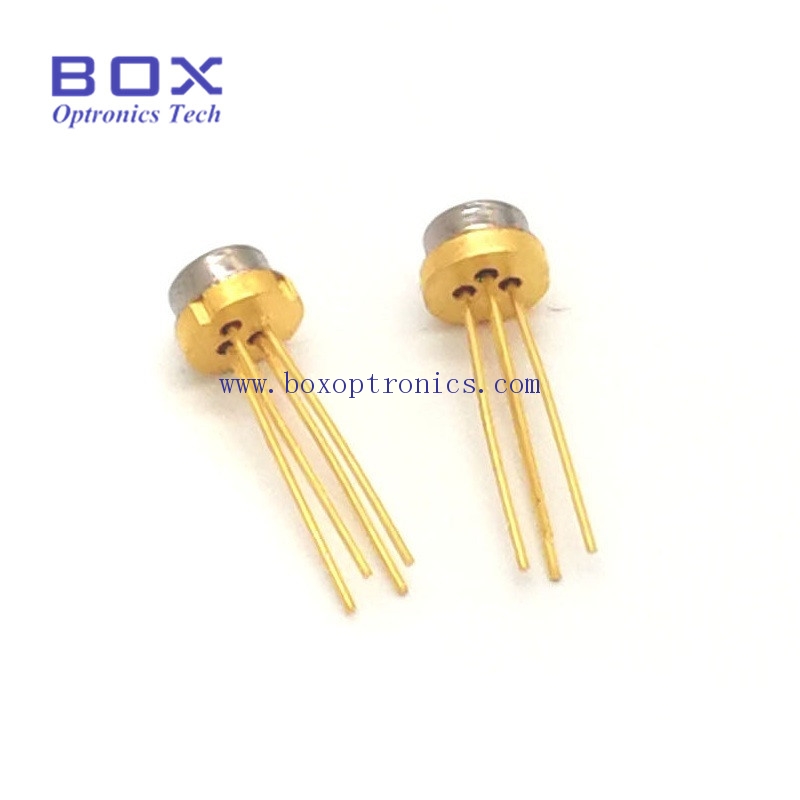

1510nm Laser diode TO56 package LD for 2.5Gbps optical telecommunication

The TO‐56 packaged laser diode comes standard with a circularized and collimated output beam, ESD protection.Lasing wavelength can be accurately specified and repeatedly manufactured to within +/‐2nm upon request.

File Name : Format: Size:

Description Feedback

Features

1510nm wavelengths;

Low threshold and low operating current;

High efficiency and high output power;

Wide operation temperature range;

High reliability;

TO56 standard package.

Applications

2.5/10Gbps fiberoptic transmission;

Optical communication transceivers;

Storage area networks;

Fiber optic sensors;

Fiber optic test and measurement.

Electro-Optical Parameters

Parameter	Symbol	Test Conditions	Min.	Typ.	Max.	Unit
Threshold Current	I_th	CW	-	8	15	mA
Threshold Current	I_th	CW,TC=85℃	-	30	50	mA
Output Power	P_O	CW, If=Ith+20mA	5	-	-	mW
Operating Voltage	V_op	CW, P_L= 8mW	-	1.1	1.5	V
Peak Wavelength	λp	CW P_L=8mW,T=-40~85℃	1508	1510	1512	nm
Side Mode Suppression Ratio	SMSR	CW,P_L=8mW,T=-40 to 85℃	35	40	-	dB
Rise time/Fall time	tr/tf	2.5Gbps, Ib=Ith 20%-80%	-	0.12	0.3	ns
Monitor Current (PD)	I_m	CW,P_L=8mW, RL=10Ω	0.1	0.3	1.0	mA
Dark Current (PD)	I_d	VRD=5V	-	-	1.0	μA
Capacitance (PD)	C_t	V_RD=5V, f=1MHz	-	10	20	pF

Package

Original Carton Package;

As customers‘ requirement.

Shipping

5-10 Working days after receive the payment;

Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);

Shipping fee depends on the weight and size.

Payment

For large orders: T/T, Credit card;

For small orders: Paypal are accepted.

Warranty

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
