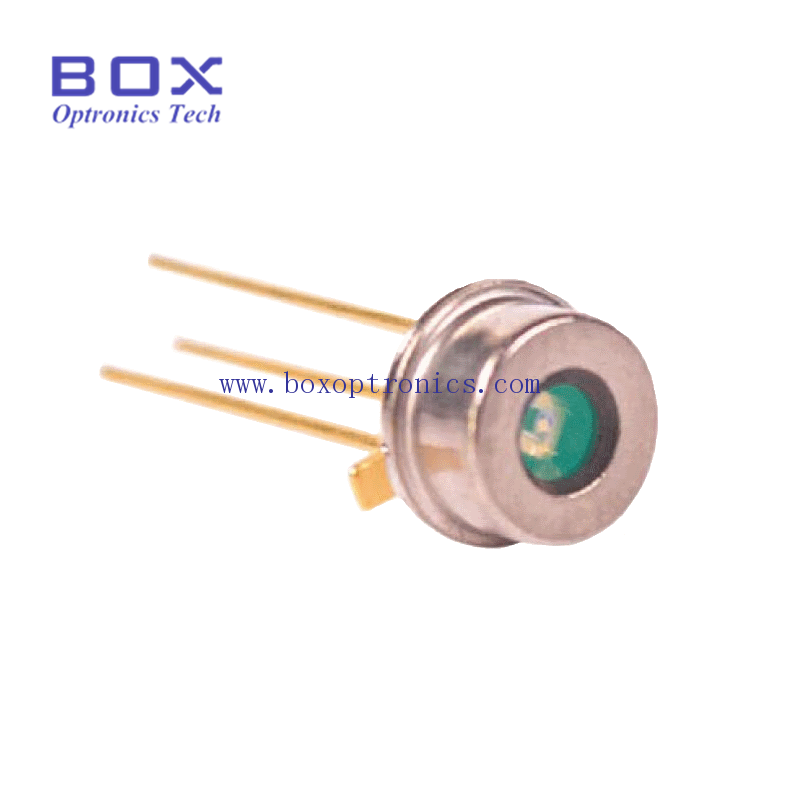

High speed avalanche photodiode 50um APD

An avalanche photodiode (APD) is a highly sensitive semiconductor electronic device that exploits the photoelectric effect to convert light to electricity.

File Name : Format: Size:

Description Feedback

Features

High Responsivity;

High Stability;

Low Capacitance;

Low Dark Current.

Applications

CATV;

OTDR;

Lidar;

Fiber channel.

Electro-Optical Parameters

Parameters	Symbol	Test conditions	Min.	Typ.	Max.	Unit
Detection Range	λd	Vr=VBR-3V	1000		1680	nm
Detect Area	φ	-	-	50	-	μm
Responsivity	Re	λ=1.55μm, φ0=1μw, Vr=VBR-3V	10	-	-	A/W
Multiplication Factor	M	λ=1.55μm, φ0=1μw, Vr=VBR-3V	10	-	-	-
Max Gain	Mmax	Mmax	20	-	-	-
Breakdown Reverse Voltage	VBR	ID=10μA, φe=0μw	40	-	50	V
Dark Current	Id	VR=VBR-3V, φe=0	-	-	10	nA
Capacitance	C	Vr=VBR-3V	-	-	0.5	pF
-3db Cutoff Frequency	BW	VR=VBR-3V, RL=50Ω	2.5	-	-	GHz
Working Voltage Range=VBR -VP
