SM PM fiber coupled 1550nm SOA optical amplifier for optic connection and switch

The Semiconductor Optical Amplifier Devices at 1310nm and 1550nm are designed by using a high quality angled SOA chip and a TEC which can assure a stable amplified output for a large dynamic input signal.

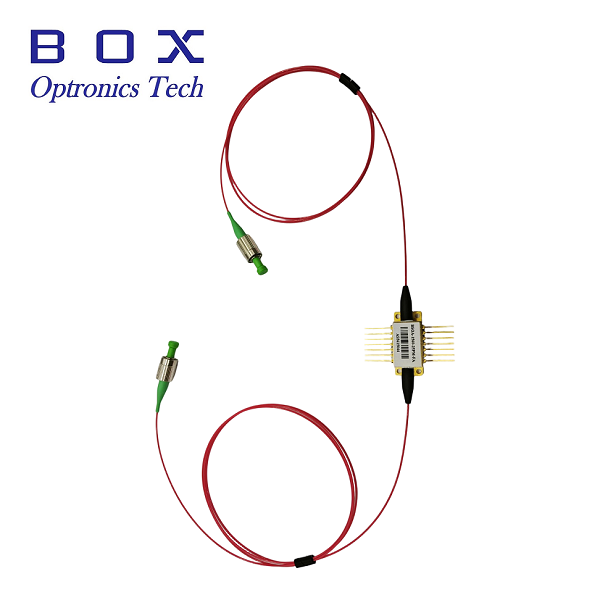

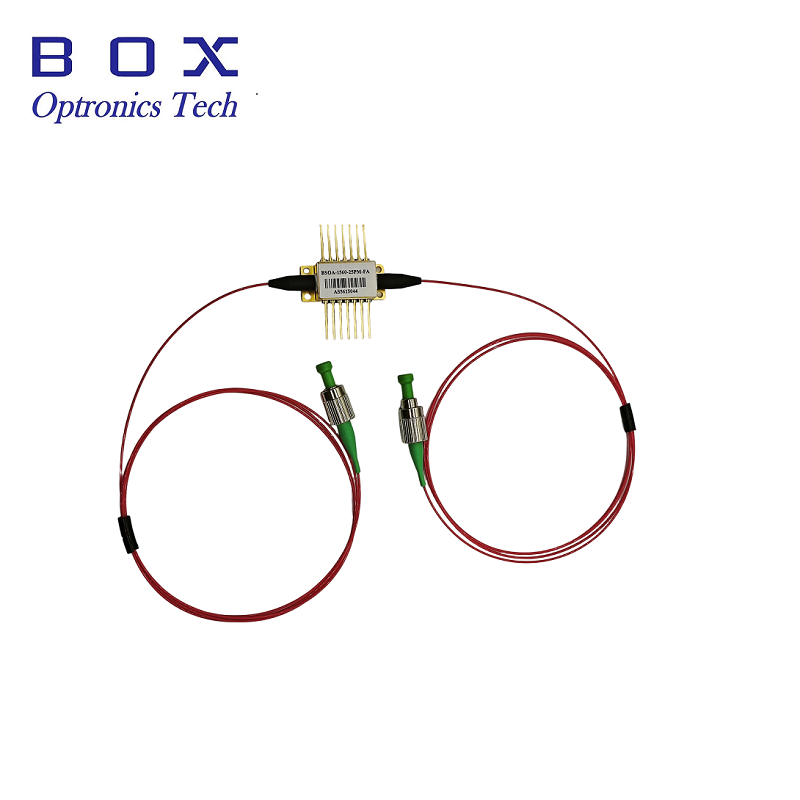

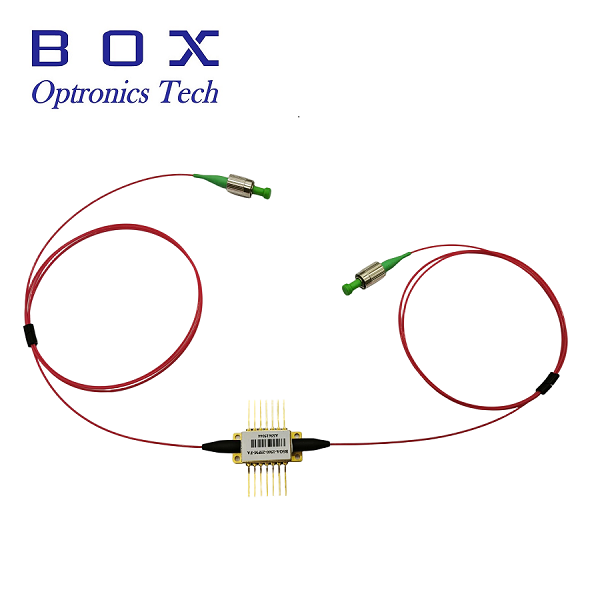

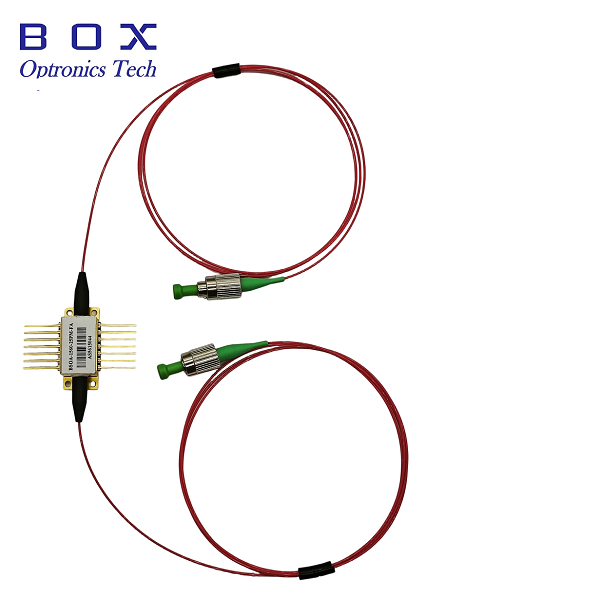

The devices are available in a standard, 14-pin butterfly package at the 1310nm and 1550nm bands. The SOA devices have high optical gain, high saturation output power, low polarization dependent loss, low noise figure and broad wavelength range. We have options of optical isolators for input and/or output side as well as output fibers of SM fibers, PM fibers and other special fibers per customer specifications. The products are Telcordia GR-468 qualified, and in compliance with RoHS requirement.

File Name : Format: Size:

Description Feedback

Features

Wide Optical Bandwidth;

High saturation output power;

Low polarization sensitivity;

Built-in TEC and optical isolator;

Low gain ripple and NF.

Applications

Loss compensation for fiberoptic connection and switch;

WDM fiberoptic networks;

100G fiberoptic data center.

Electro-Optical Parameters

Parameter	Symbol	Condition	Min.	Typ.	Max.	Unit
Center Wavelength	λc	TL=15～35℃ CW	1510	1550	1570	nm
3dB Optical Bandwidth	Δλ_3dB	-	50	-	-	nm
3dB saturation output power	Psat	CW	6	8	-	dBm
Small Signal Gain@λc(Over C-Band @ P_in = -25 dBm)	G_max	-	13	16	-	dB
Gain Ripple with Respect to λ	ΔG	-	-	0.5	1.0	dB
Noise Figure	NF	-	-	10	-	dB
Polarization Dependent Gain	PDG	-		2.0	3.0	dB
Optical Isolation	I_SO	-	30	-	-	dB

Package

Original Carton Package;

As customers‘ requirement.

Shipping

5-10 Working days after receive the payment;

Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);

Shipping fee depends on the weight and size.

Payment

For large orders: T/T, Credit card;

For small orders: Paypal are accepted.

Warranty

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.
