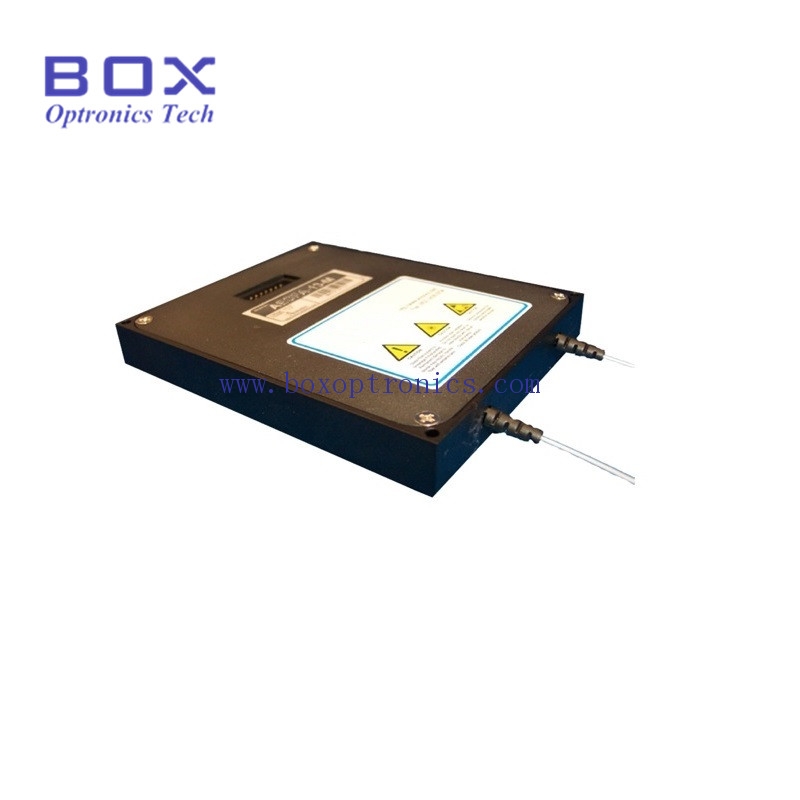

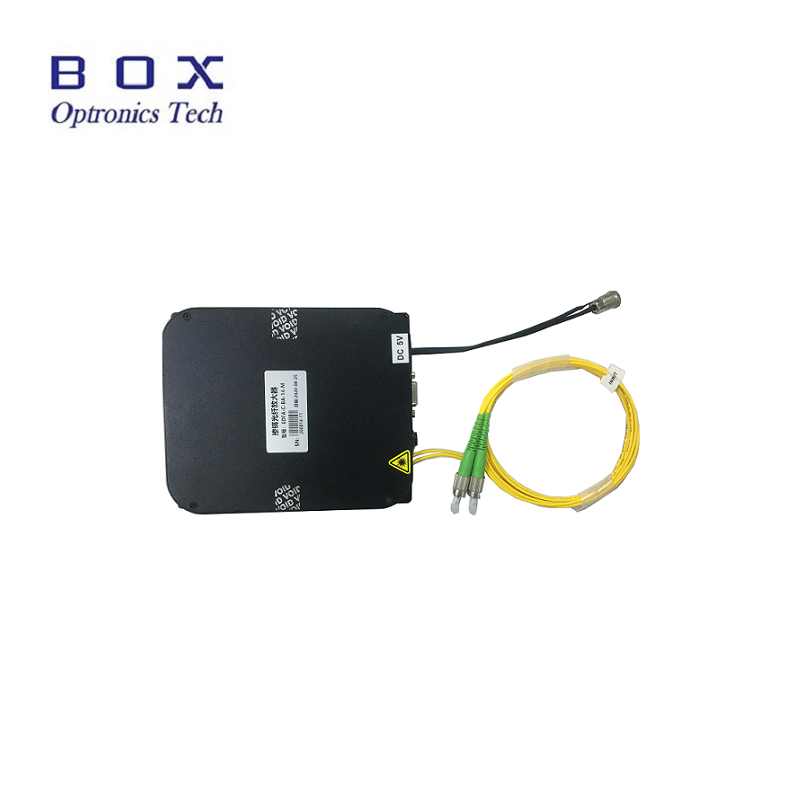

Mini EDFA Erbium Doped Fiber Amplifier
The Mini erbium-doped fiber amplifier adopts integrated all-fiber structure design, optimizes erbium-doped, ytterbium-doped or erbium-ytterbium co-doped fiber laser path, and cooperates with strictly selected imported pump lasers to achieve high-performance output.
For different working environments, APC, ACC, or AGC can be selected.
This series of products can be widely used in communication, scientific research, experimental teaching, device testing and measurement and other fields.

File Name : Format: Size:

Description Feedback
Features
High Precision APC, ACC or AGC Control Circuit;
High stability and reliability;
Multichannel EDFA, Flat Gain;
High gain, low noise figure;
Ultra-low power input;
Modular, desktop, rack type optional.

Applications
Preamplifier (OPA);
Line Amplifier (OLA);
Power amplifier (OBA);
DWDM Transmission System(DWDM).

Electro-Optical Parameters

Parameter

Unit

Min.

Typ.

Max.

Wavelength Range

nm

1528



1560

Output Optical Power

dBm





20

Input Optical Power

dBm

-10

0



Noise coefficient

dB



4.5@Pi=0dBm



Input / Output Isolation

dB

30





Echo loss

dB

45





Adjustable range of output power

%

0



100%

Output power regulation mode



Continuity

Power Control Mode



APC/ACC/AGC

Working voltage

V

DC 5V

Power Loss

W





20

Package



90*70*15mm


Package

Original Carton Package;
As customers‘ requirement.

Shipping
5-10 Working days after receive the payment;
Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);
Shipping fee depends on the weight and size.


Payment
For large orders: T/T, Credit card;
For small orders: Paypal are accepted.

Warranty
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
