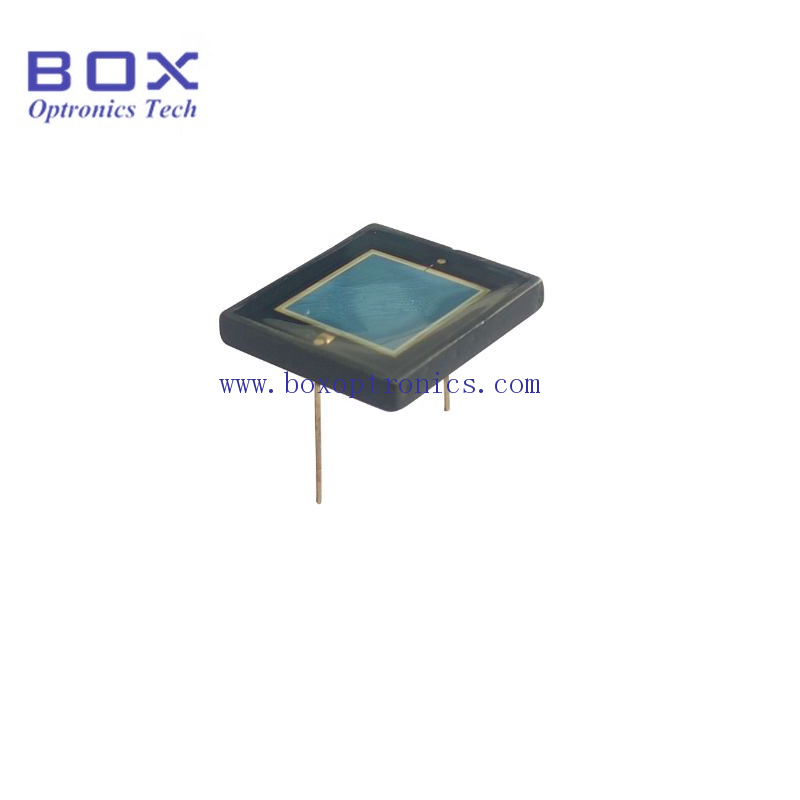

10mm near-infrared silicon photodiode detector for small-angle X-ray scattering

Si PIN photodiode having sensitivity in the UV to near IR spectral range.

File Name : Format: Size:

Description Feedback

Features

High reliability, Ultra low dark current;

Top illumination Planar PIN PD;

Active area 10x10mm;

Non-hermetic ceramic package with epoxy resi.

Applications

Optical sensor;

Optical measurement equipment;

Industrial automatic control;

IR/ Laser light Monitoring;

Fluorescence detector;

Medical equipment;

Spectrophotometry/CT scan.

Electro-Optical Parameters

Parameters	Symbol	Test conditions	Value	Unit
Detection range	λ_d	-	400 ~ 1100	nm
Detect area	Φ	-	10x10	mm
Responsivity	Re	λ=650nm	0.38	mA/mW
		λ=940nm	0.6
		λ=1064nm	0.2
Dark current	I_D	V_R=0V	0.1	nA
Dark current	I_D	V_R=10V	2	nA
Reverse break voltage	V_BR	I_R=10uA	80	V
Junction capacitance	Cj	f=1MHz, V_R=0V	1000	pF
Junction capacitance	Cj	f=1MHz, V_R=10V	150	pF
Saturated optical power	P_S	V_R=5V	25	mW
Operating voltage	V_R	-	0-10	V
Shunt resistance	R_Sh	V_R =10mV	100	GΩ
Package	Non-hermetic ceramic package with epoxy resi
