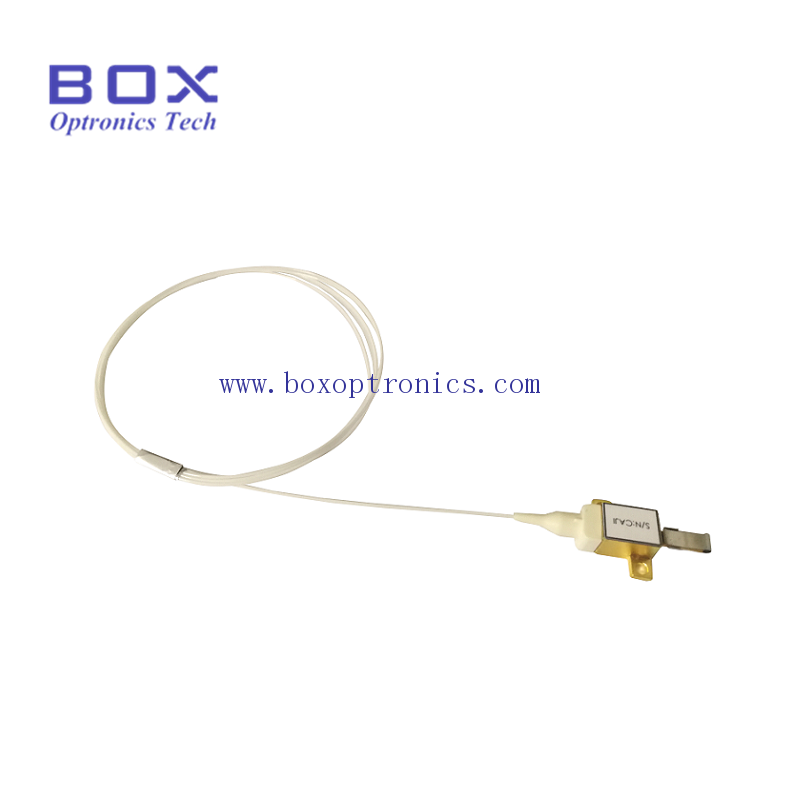

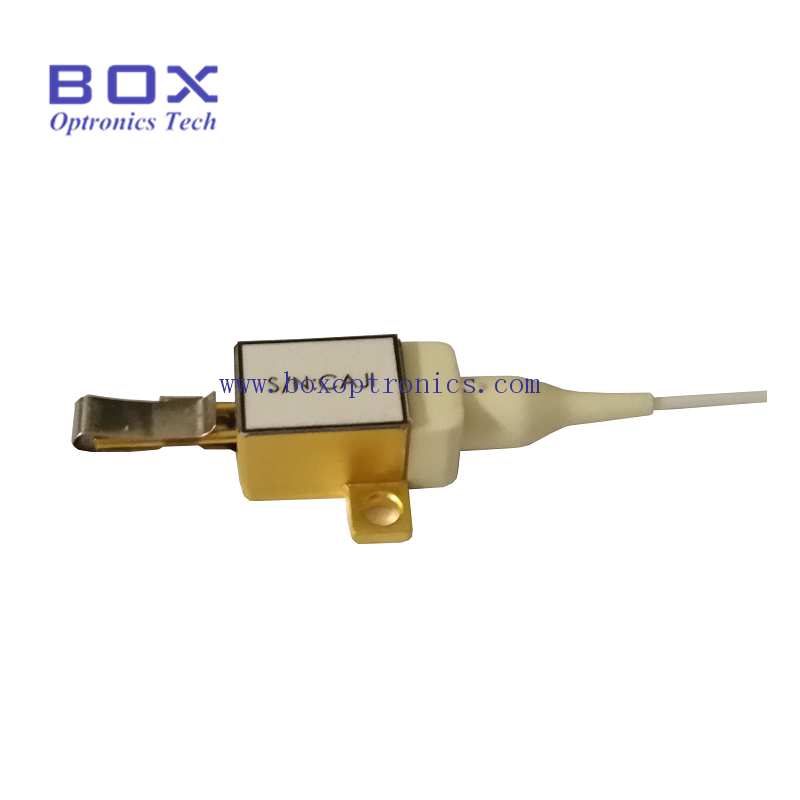

10 W 915nm 0.22NA Fiber coupled diode laser
The 915nm multimode pump laser diode modules are offered in a fiber coupled, high reliability L4 package. which offer a high output power of up to 10 Watts from a small footprint fiber coupled package.

File Name : Format: Size:

Description Feedback
Features
High coupling efficiency;
High brightness;
Reliable Au/Sn bonding;
RoHS Compliance.

Applications
Fiber laser pumping;
Medical/Life and health sciences.

Electro-Optical Parameters

Parameter

Symbol

Min

Typical

Max

Unit

Operating output power

Pout

10.0





W

Range of available wavelength

λ

905

915

925

nm

Spectral width @ FWHM

Δλ



3.0



nm

Threshold current

Ith

-

0.3

-

A

Operating current at Pout

Iop



12.0

 14.0

A

Forward voltage at Pout

Vf



-

2.0

V

Power conversion efficiency

-



48%



-

Slope efficiency

η



1.0



W/A

Feedback protection(1040-1100nm)

-





3.0

V

Fiber core/cladding diameter

DCOR



105/125



µm/µm

Fiber numerical aperture

NA



0.22



-


Package

Original Carton Package;
As customers‘ requirement.

Shipping
5-10 Working days after receive the payment;
Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);
Shipping fee depends on the weight and size.


Payment
For large orders: T/T, Credit card;
For small orders: Paypal are accepted.

Warranty
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
