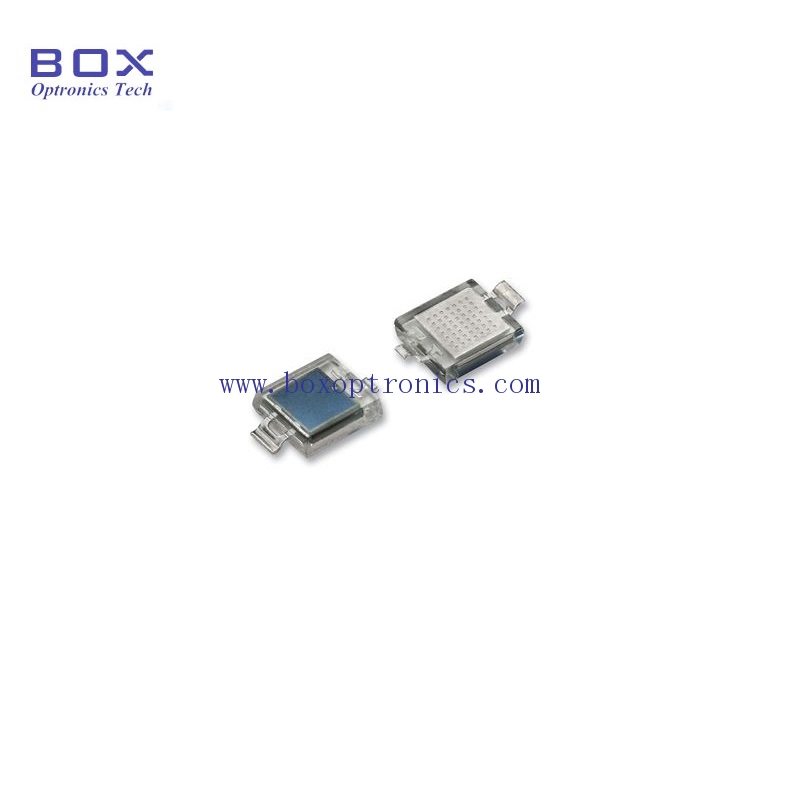

Factory 1.5mm SMD IR visible spectrum silicon photodetector
This high speed and high sensitive photodiode in miniature flat top view lens SMD package and it is molded in a water clear plastic. it is spectrally matched with the visible and infrared emitting diode.

File Name : Format: Size:

Description Feedback
Features
High responsivity;
Low dark current;
High speed;
Small size;
Low cost.

Applications
Industrial automatic control;
Optical measurement equipment;
Game machine.

Electro-Optical Parameters

Parameters

Symbol

Test conditions

Value

Unit

Detection range

λd

-

730 ~ 1100

nm

Detect area

Φ

-

1.5 x 1.5

mm

Responsivity

Re

λ=750nm

0.15

mA/mW

λ=940nm

0.5

λ=1050nm

0.1

Dark current

ID

VR=10V

10

nA

Open-circuit voltage

VOC

Ee=5mW/cm2, p=940nm

0.4

V

Short-circuit current

ISC

Ee=5mW/cm2, p=940nm

6.5

uA

Reverse light current

IL

Ee=5mW/cm2,p=940nm,VR=5V

6.5

uA

Rise time

TR

RL =1000Ω, VR =10V

10

ns

Reverse break voltage

VBR

IR=100uA

170

V

Junction capacitance

Cj

f=1MHz, VR=5V

6

pF

Operating voltage

VR

-

0-10

V

Package

SMD


Package

Original Carton Package;
