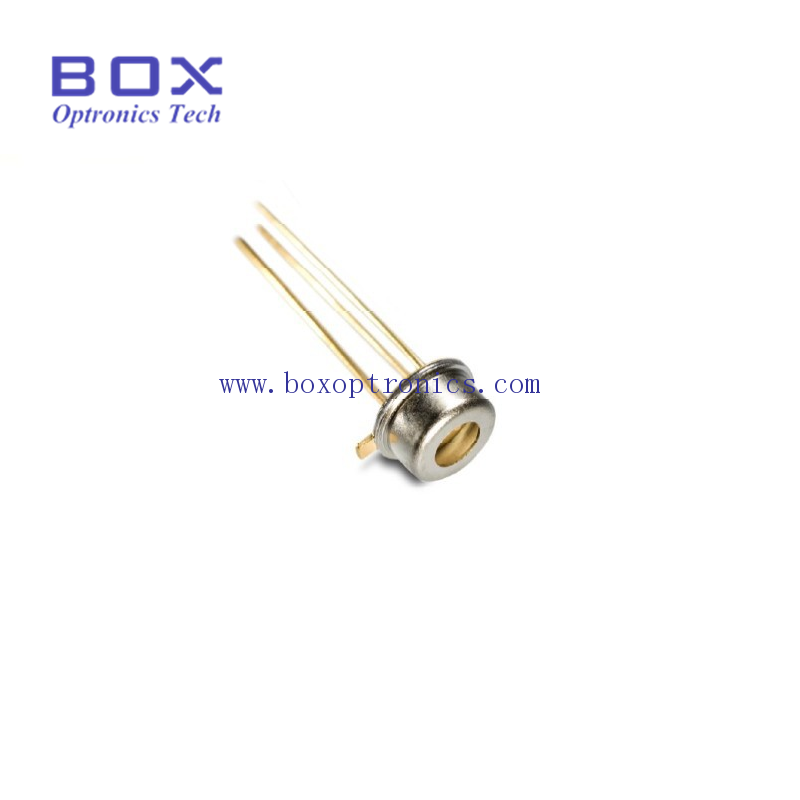

High responsibility 0.3mm TO46 Photodiode

A photoelectric semiconductor device for detecting and often measuring radiant energy (such as light).
0.4A/W@850nm
0.9A/W@1310nm
0.95A/W@1550nm

File Name : Format: Size:

Description Feedback

Features

High responsibility;

High reliability,

Low dark current;

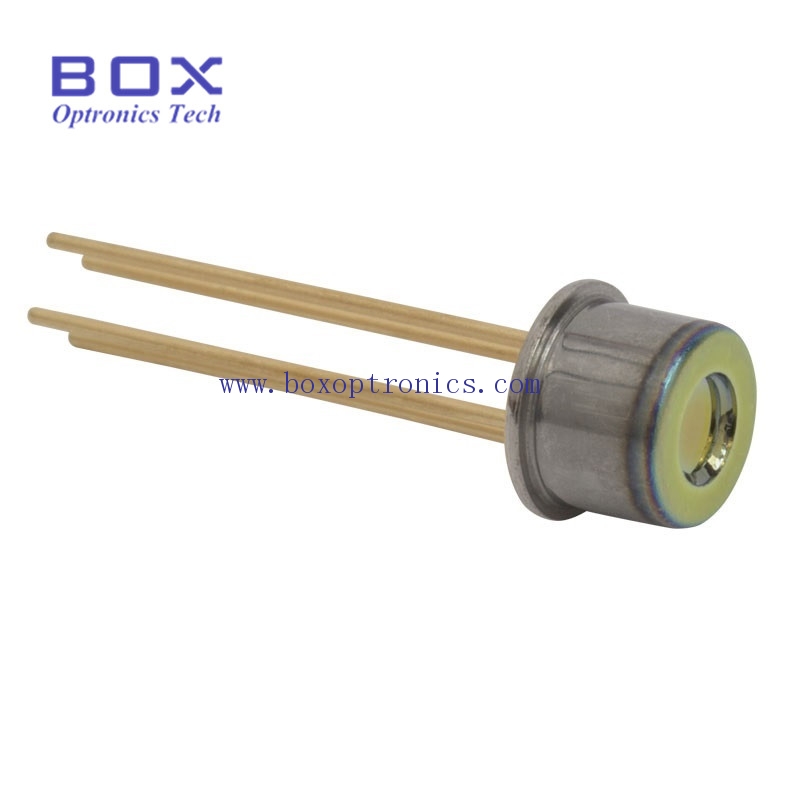

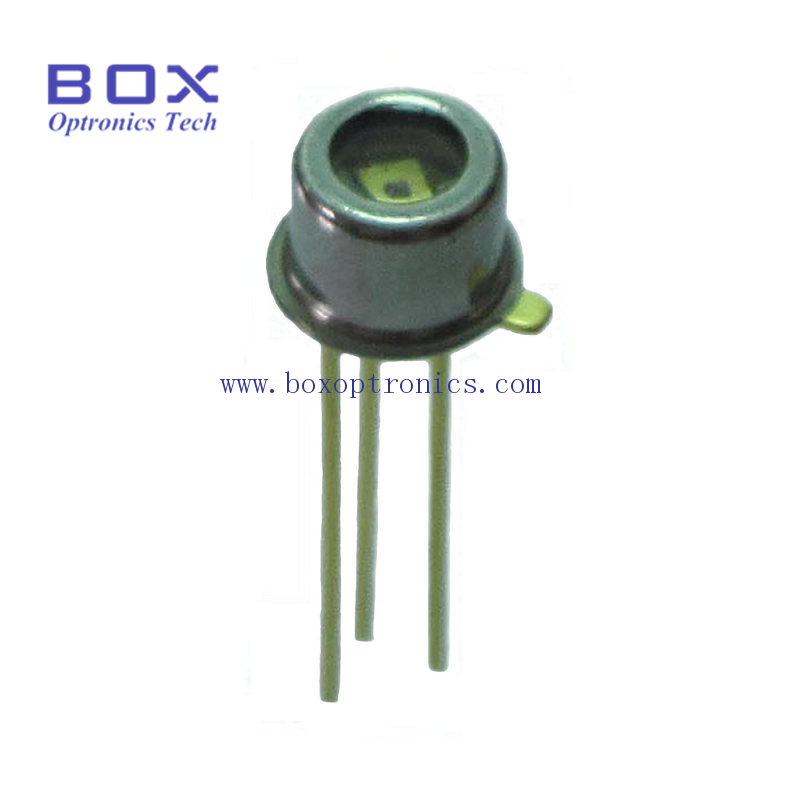

TO46 Ball/flat window hermetic package.

Applications

Optical fiber communication instrument;

Optical power measurement / monitoring;

Optical sensor.

Electro-Optical Parameters

Parameter	Symbol	Conditions	Min.	Typ.	Max.	Unit
Responsibility@1550	R	Vr= -5V	0.95	-	-	A/W
Responsibility@1310	R	Vr= -5V	0.90	-	-	A/W
Responsibility@850	R	Vr= -5V	0.40	-	-	A/W
Dark Current	Id	Vr= -5V	-	-	5	nA
Wavelength	λ	-	850	850/1310/1550	1650	nm
Active Area	φ	-	-	0.3	-	mm
Bandwidth	fc	-	-	-	-	GHz
Capacitance	C	Vr= -5V	-	4.6	6.0	pf
Operating Voltage	Vr	-	-	-	-20	V

Package

Original Carton Package;

As customers‘ requirement.

Shipping

5-10 Working days after receive the payment;

Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);

Shipping fee depends on the weight and size.

Payment

For large orders: T/T, Credit card;

For small orders: Paypal are accepted.

Warranty

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.
