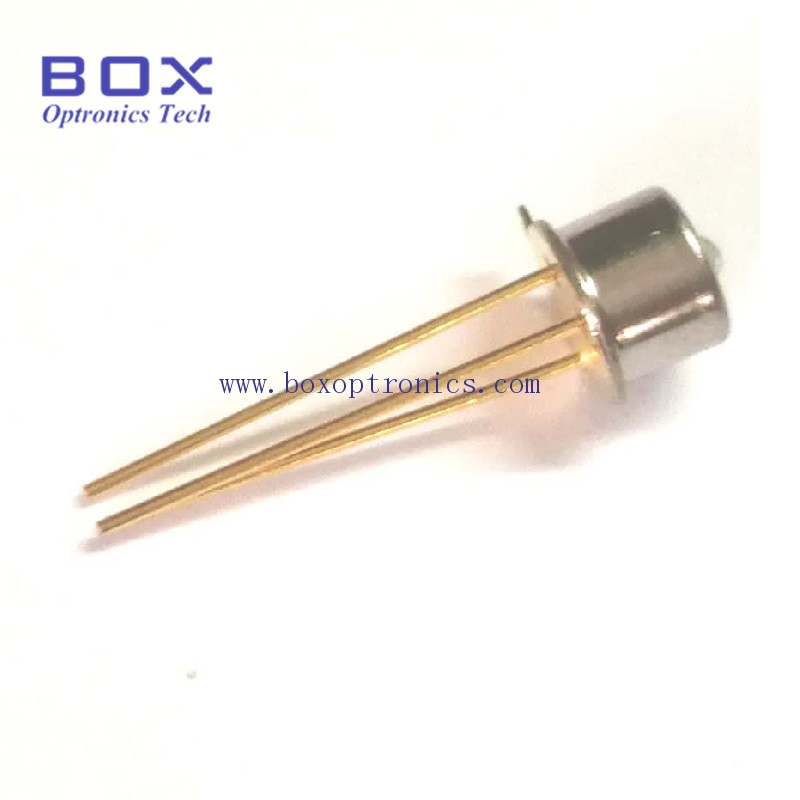

TO5 package 2mm photodetector
Sensitive areas of standard large area InGaAs PIN Photodiode series products are Ф1mm, Ф2mm, and Ф3mm for advanced driver assistance systems (ADAS), LiDAR.

File Name : Format: Size:

Description Feedback
Features
High responsibility and high reliability,
Low capacitance,
Low dark current,
TO5 flat window hermetic package.

Applications
Optical power meter,
Laser ranging,
Optical sensor.

Electro-Optical Parameters

Parameters

Symbol

Conditions

Min.

Typ.

Max.

Unit

Responsibility@1550

R

Vr= 0V

0.90

0.95

-

A/W

Dark Current

Id

Vr= -5V

-

2

20

nA

Wavelength

λ

-

800

1550

1700

nm

Active Area

φ

-

-

2

-

mm

Bandwidth

fc

3dB

-

-

-

GHz

Capacitance

C

Vr= -5V

-

160

230

pf

Operating Voltage

Vr

-

-

-

-5

V

Operating Temperature

Top

-

-30

-

+65

 Storage Temperature

Tst

-

-40

-

+85


Package

Original Carton Package;
As customers‘ requirement.

Shipping
5-10 Working days after receive the payment;
Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);
Shipping fee depends on the weight and size.


Payment
For large orders: T/T, Credit card;
For small orders: Paypal are accepted.

Warranty
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
