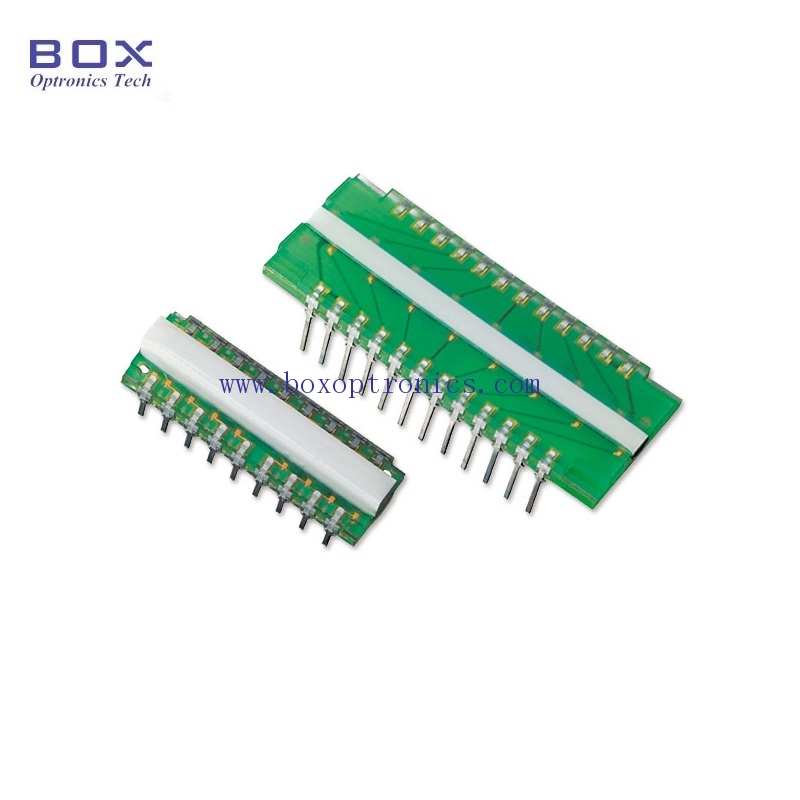

Low price 1x16 multiple silicon photodiode linear array for spectrophotometry

Si photodiode array can be configured by arranging multiple photodiodes. It can be used in a wide range of applications such as light position detection, imaging, and spectrophotometry.

File Name : Format: Size:

Description Feedback

Features

High responseivity;

Low dark current;

16 channel linear array;

Transparent epoxy mold package;

Low crosstalk.

Applications

Optical switches;

Optical encoder;

Pulse detectors;

Sensors and industrial controls.

Electro-Optical Parameters

Parameters	Symbol	Test conditions	Value	Unit
Detection range	λ_d	-	400 ~ 1100	nm
Detect area	Φ	-	1.475×3(x16)	mm
Responsivity	Re	λ=650nm	0.35	mA/mW
		λ=905nm	0.5
		λ=1064nm	0.15
Dark current	I_D	V_R=5V	2	nA
Gap between element	-	-	0.1	mm
Reverse break voltage	V_BR	I_R=10uA	30	V
Junction capacitance	Cj	f=1MHz	0.1	nF
Saturated optical power	P_S	V_R=5V	< 0.3	W/cm2
Operating voltage	V_R	-	0-5	V
Package	PCB with Transparent epoxy

Package

Original Carton Package;

As customers‘ requirement.

Shipping

5-10 Working days after receive the payment;

Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);

Shipping fee depends on the weight and size.

Payment

For large orders: T/T, Credit card;

For small orders: Paypal are accepted.

Warranty

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.
