High qualitiy 0.3mm 800-2600nm InGaAs photodiode

a photoelectric semiconductor device for detecting and often measuring radiant energy (such as light).

File Name : Format: Size:

Description Feedback

Features

Low noise, High reliability;

800-2600nm wide wavelength range;

0.3mm Active area;

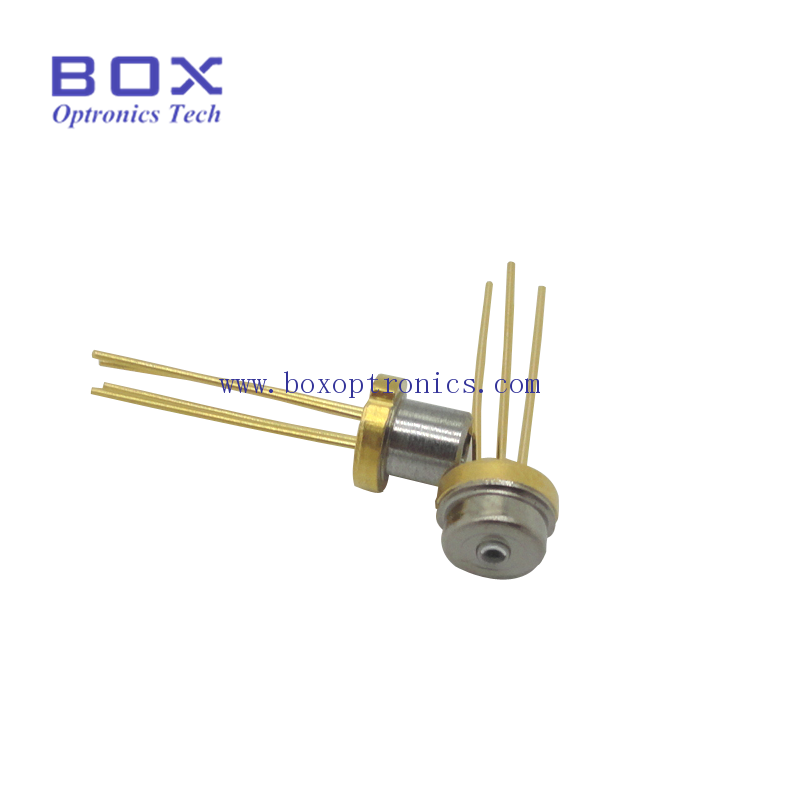

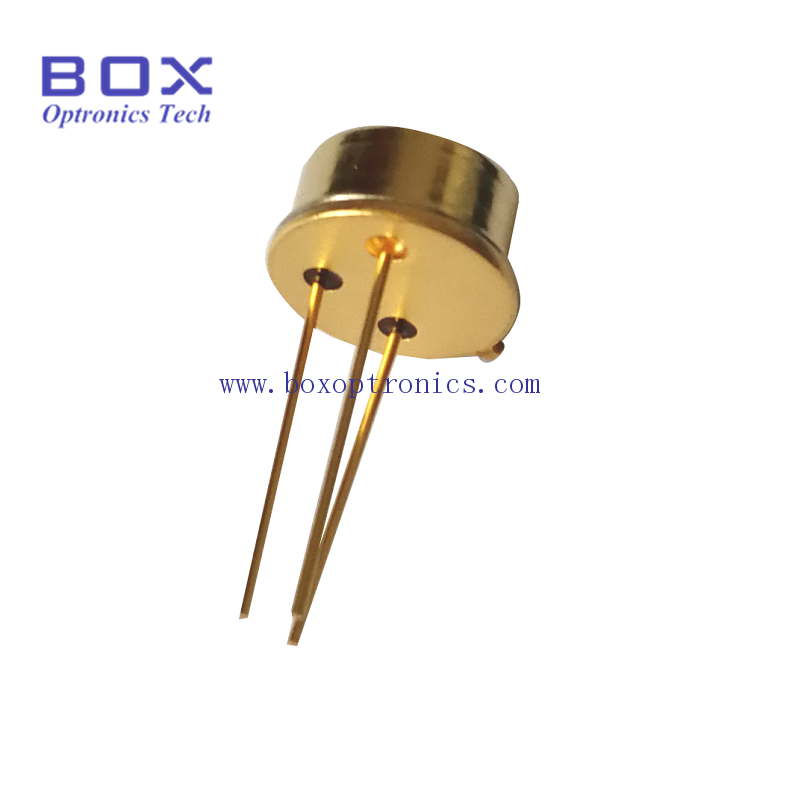

Hermetic package TO46 CAN or with fiber coupling.

Applications

Gas analyzer;

Environment measurement;

Optical sensor, Temperature sensing;

Covert IR sensing, Spectrography;

Medical and Chemical analysis;

Optical power meter, Space light detect equipment.

Electro-Optical Parameters

Parameter	Symbol	Unit	Value(typ.)
Active diameter	Φ	mm	0.3
Spectral range	λ	nm	800-2600
Responsivity	Re (V_R=0.2V,λ=850nm )	mA/mW	0.21
	Re (V_R=0.2V,λ=1310nm )		0.45
	Re(V_R=0.2V,λ=2300nm)		1.3
	Re(V_R=0.2V,λ=2600nm)		0.23
Response time	Tr (R_L=50Ω, V_R=0.2V)	ns	12
Dark current	ID(V_R=0V)	nA	40
Dark current	ID(V_R=0.2V)	nA	300
Reverse Breakdown voltage	VBR (I_R=10uA)	V	2
Saturated Optical Power	Ps(V_R =0.2V)	mW	4
Operating voltage	V_R	V	0-0.2
package	Hermetic package TO-CAN

Package

Original Carton Package;

As customers‘ requirement.

Shipping

5-10 Working days after receive the payment;

Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);

Shipping fee depends on the weight and size.

Payment

For large orders: T/T, Credit card;

For small orders: Paypal are accepted.

Warranty

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
